Characteristic
1, high dielectric strength, good insulation performance, reduce raw device operating temperature, thereby prolonging the service life of the products, widely used in potting relay, inductors and other products.
2, thermal conductivity, good heat dissipation, high temperature, low temperature, excellent heat stability, the high temperature sensitivity is greatly reduced.
3, prevent aging: the product packing after curing aging is not easy, to avoid the other similar products easy to aging, cracking phenomenon.
4, good sealing performance: the excellent sealing performance, make the electronic products to reduce vibration, reduce noise.
5, waterproof moisture-proof moisture: electronic components coated or encapsulated with excellent moisture-proof, waterproof, dustproof, corrosion resistance, ozone resistance, weather resistance and other aspects of the effect is good.
6, pouring temperature low: encapsulating temperature is low, does not damage the heat resistance in the components of 85 ℃ -105 ℃ above.
7, potting process is simple: can use manual or sealing, potting machine assembly line work, convenient operation, improve the production efficiency.
| Project | SPECS |

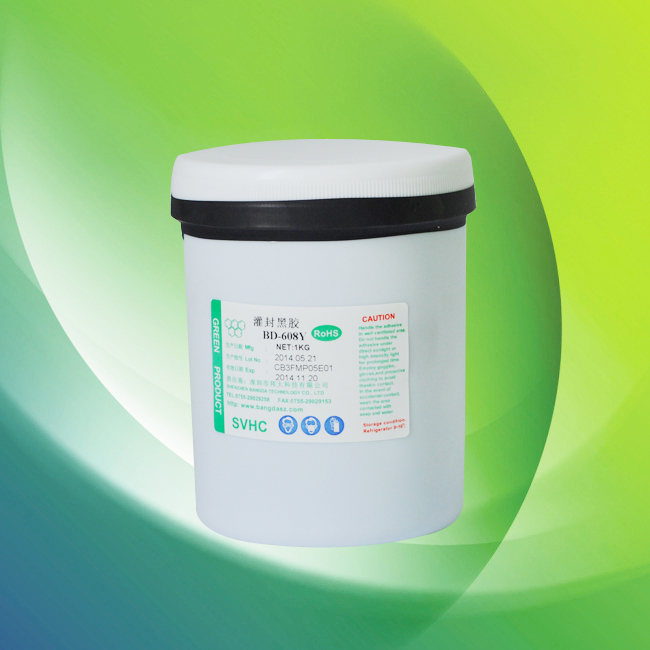

| COB Vinyl Model | BD-608Y# |
| Environmental classification | RoHS model |
| Appearance | Black viscous liquid |
| Density | 1.40±0.05 |
| Viscosity(25℃ mPa.S) | 3.9～5.8×104 |
| Halogen content（PPM) | ≤850 |
| Withstanding Voltage（KV/mm） | 20-30 |
| Volume resistivity（25℃ Ω.mm3） | 4.8×1017 |
| Surface resistivity（25℃ Ω） | 3.3×1017 |
| Glass transition temperature（Tg ℃ ） | 178 |
| Impact strength（Kg/ mm2） | 9-12 |
| Water absorption（25℃ % 12hour） | 0.000 |
| Warmed Time | 4H-8H |
| Solidify valid | 130℃/50-60min |
| After curing color | Matt |
| Store | 7day/25℃ 180day/0-10℃ |
| Package | 1Kg/tank 5Kg/tank 20Kg/barrel |
